PFERD TC Burrs Cylindrical ZYAS End Cut Dia. 6 x 13MM EAN 4007220049563
Cut 3 PLUS is cross cut and especially well-suited to machining of cast iron, steel, stainless steel (INOX), nickel-based alloys and titanium alloys. It is characterized by its high stock removal rate.
Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material.

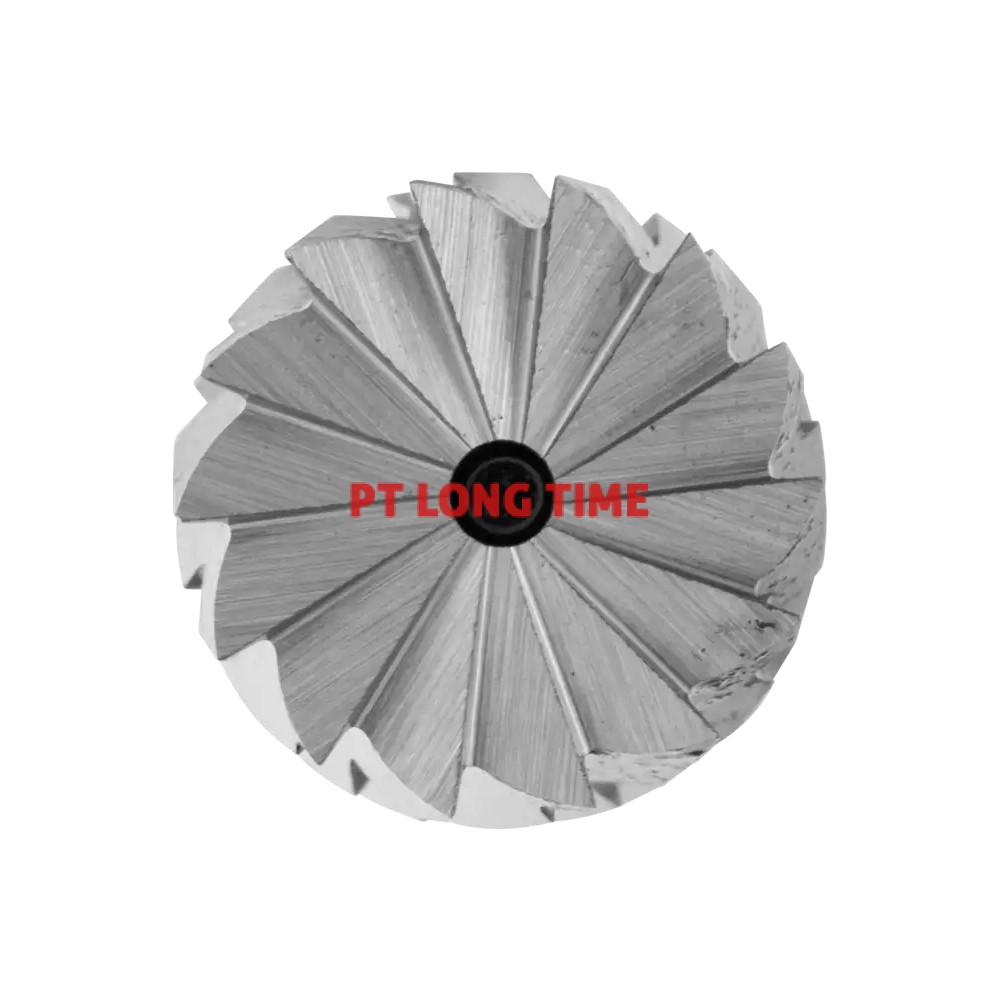

Cylindrical burr according to DIN 8032 with circumferential and end cut conforming to DIN 8033.
Name
PFERD TC Burrs Cylindrical ZYAS End Cut Dia. 6 x 13MM EAN 4007220049563
Brand
Condition
New
| Cut | 3 PLUS |
| Dia. external | 6 mm / 15/64 Inch |
| Dia. shank | 3 mm / 1/8 Inch |
| Length, cut | 13 mm |
| Length, total | 43 mm / 1.11/16 Inch |
| RPM from, grey cast iron, white cast iron | 24000 RPM |
| RPM from, hardened, heat-treated steels over 1,200 N/mm² | 13000 RPM |
| RPM from, high-temperature-resistant materials | 13000 RPM |
| RPM from, rust and acid-resistant steels | 13000 RPM |
| RPM from, steels up to 1,200 N/mm² | 24000 RPM |
| RPM to, grey cast iron, white cast iron | 32000 RPM |
| RPM to, hardened, heat-treated steels over 1,200 N/mm² | 19000 RPM |
| RPM to, high-temperature-resistant materials | 24000 RPM |
| RPM to, rust and acid-resistant steels | 19000 RPM |
| RPM to, steels up to 1,200 N/mm² | 32000 RPM |
| Materials that can be worked | Applications |
|
|
| Drive types | |
|
