PFERD TC Burr Ball KUD Dia. 12 x 10MM Shank Dia. 6MM Z3P Universal Medium Cross Cut EAN 4007220047033

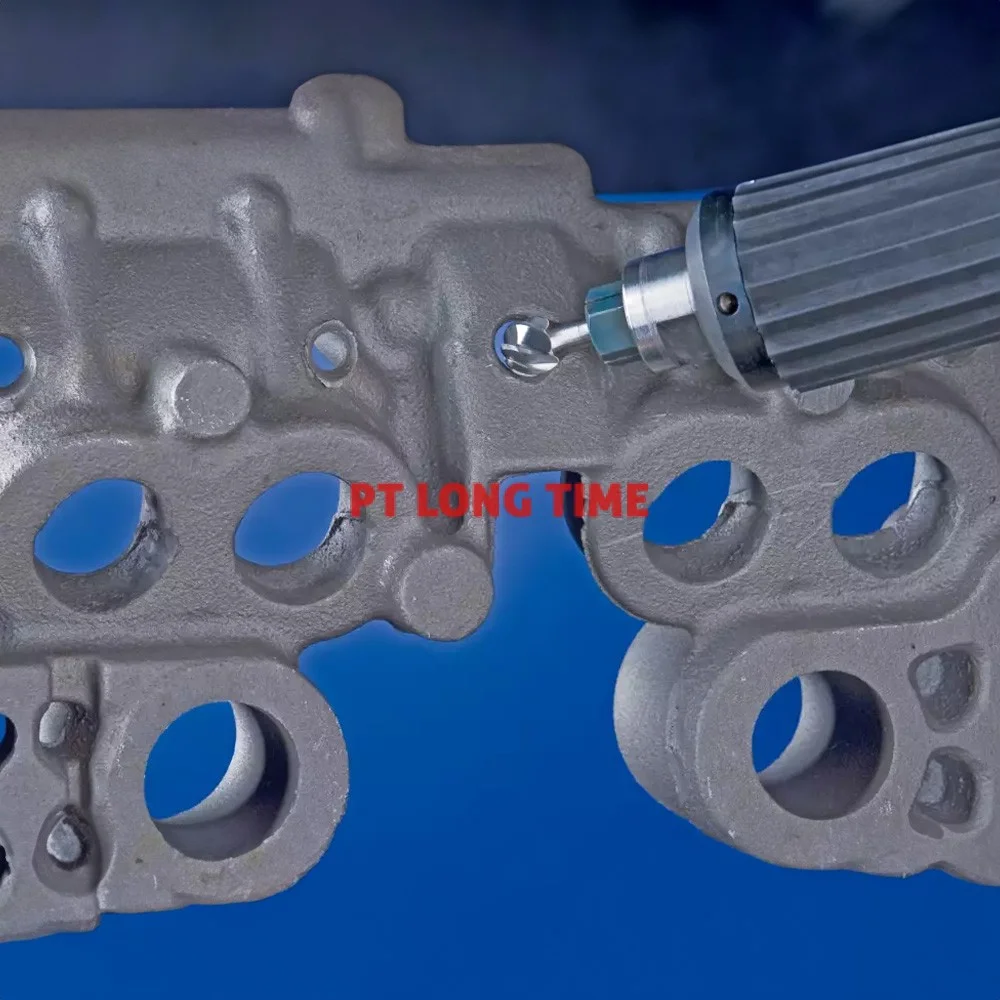

Cut 3 PLUS is cross cut and especially well-suited to machining of cast iron, steel, stainless steel (INOX), nickel-based alloys and titanium alloys. It is characterized by its high stock removal rate.
Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material.
Ball-shaped burr according to DIN 8032 with cut conforming to DIN 8033.
Name
PFERD TC Burr Ball KUD Dia. 12 x 10MM Shank Dia. 6MM Z3P Universal Medium Cross Cut EAN 4007220047033
Brand
Condition
New
| Cut | 3 PLUS |
| Dia. external | 12 mm |
| Dia. shank | 6 mm |
| Length, cut | 10 mm |
| Length, total | 2,008 |
| Length, total | 51 mm |
| RPM from, grey cast iron, white cast iron | 12000 RPM |
| RPM from, hardened, heat-treated steels over 1,200 N/mm² | 7000 RPM |
| RPM from, high-temperature-resistant materials | 7000 RPM |
| RPM from, rust and acid-resistant steels | 7000 RPM |
| RPM from, steels up to 1,200 N/mm² | 12000 RPM |
| RPM to, grey cast iron, white cast iron | 16000 RPM |
| RPM to, hardened, heat-treated steels over 1,200 N/mm² | 9000 RPM |
| RPM to, high-temperature-resistant materials | 12000 RPM |
| RPM to, rust and acid-resistant steels | 8000 RPM |
| RPM to, steels up to 1,200 N/mm² | 16000 RPM |
| Materials that can be worked | Applications |
|
|
|
Drive types |
|
|
