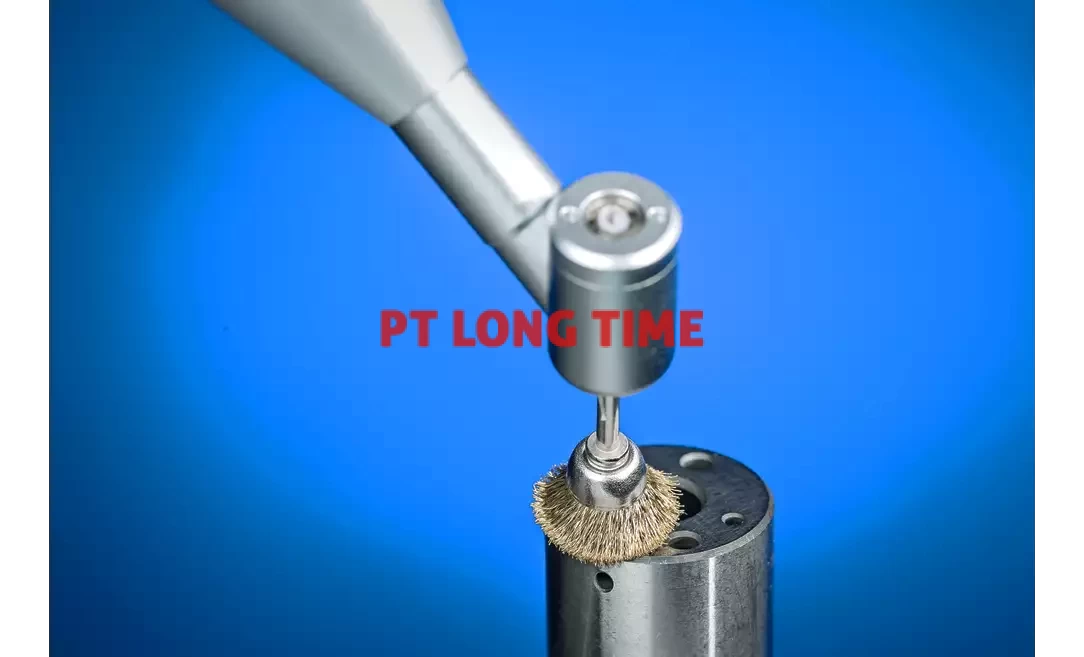

PFERD TBU Cup Brush Miniature TBU 1503/3 INOX 0.10 EAN 4007220033302

Suitable for light brushing such as deburring, cleaning and polishing. Particularly suitable for brushing on small surfaces due to face-down use with the entire brush face applied to the workpiece.

Materials that can be worked:

  • Aluminium
  • Other non-ferrous metals
  • High-temperature-resistant materials
  • Cobalt-based alloys
  • Nickel-based alloys (e. g. Inconell and Hasteloy)
  • Nickel- or titanium-based superalloys
  • Hard non-ferrous metal
  • Bronze
  • Titanium
  • Titanium alloys
  • Soft titanium alloys (tensile strength 500 N/mm²)
  • Soft non-ferrous metal
  • Stainless steel (INOX)

Applications:

  • Roughening
  • Deburring
  • Polishing
  • Cleaning
  • Removing heat discolouration
  • Removing paint
  • Derusting
  • Removing oxide layers

Drive types:

  • Flexible shaft drive
  • Straight grinder
Name
PFERD TBU Cup Brush Miniature TBU 1503/3 INOX 0.10 EAN 4007220033302
Brand
Condition
New
Opt. RPM from 4000 RPM
Opt. RPM to 10000 RPM
Max. RPM 20000 RPM
Filament material INOX
Outer dia. 15 mm
Cup dia. d2 8 mm
Face width 3 mm
Trim length 5 mm
Filament material diameter 0.1 mm
Overall length 45 mm
Shank dia. 3 mm
