PFERD Mounted Flap Wheels F 5030/6 A120 EAN 4007220155080

PFERD Mounted Flap Wheels F 5030/6 A120 EAN 4007220155080

Add Enquiry Added to Enquiry
SKU 4007220155080
Condition New
Brand Pferd

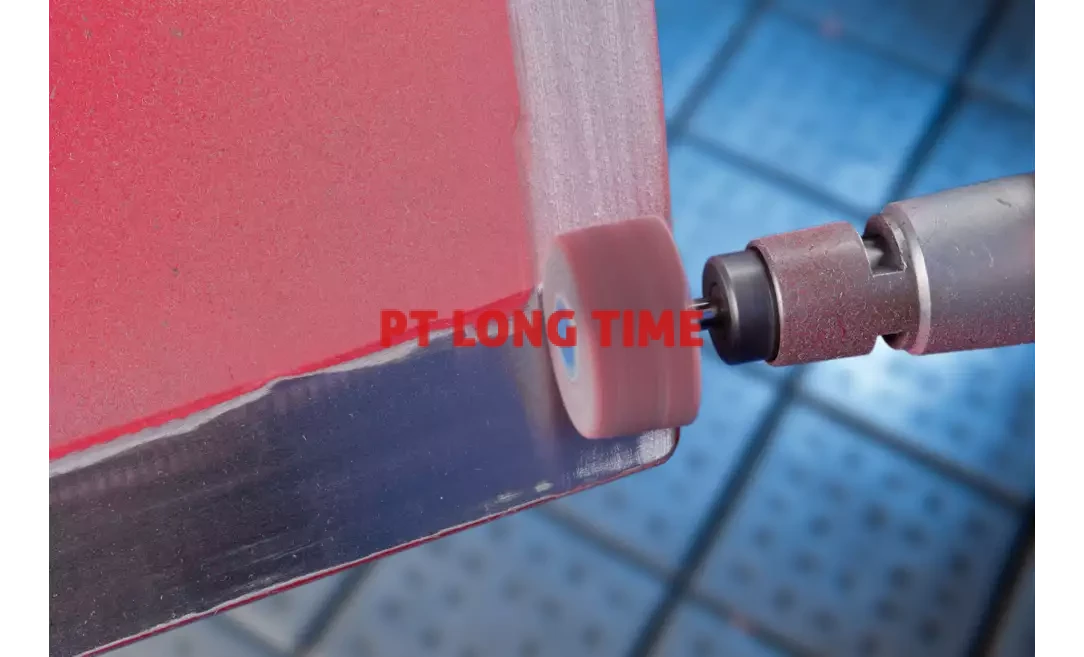

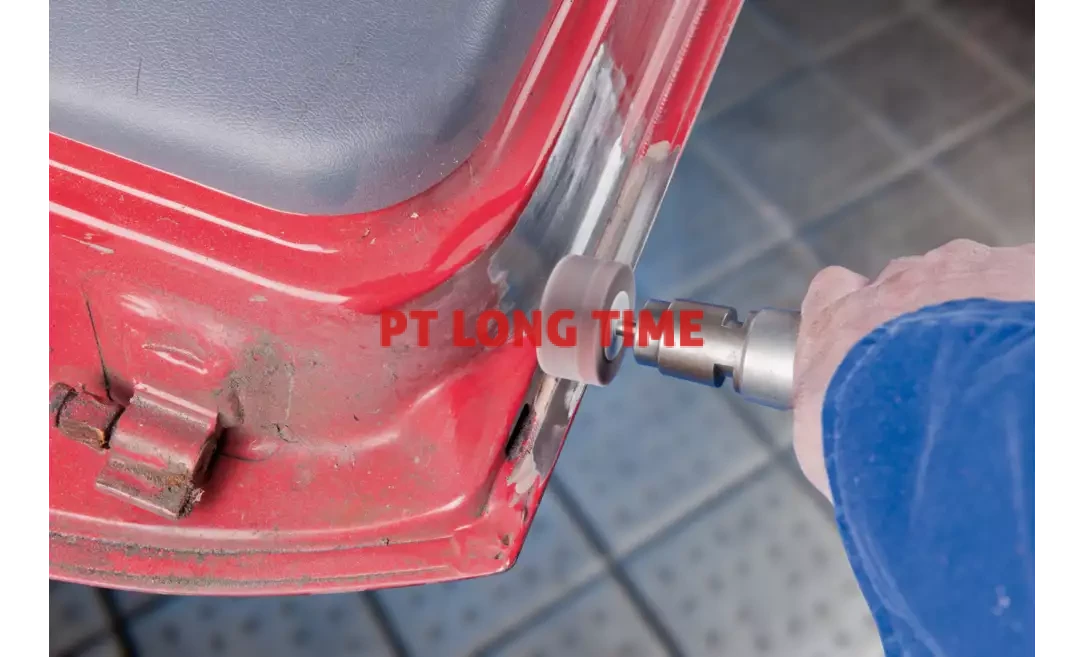

On mounted flap wheels, the flaps made of coated abrasive are arranged radially around the tool axis in a fan-type structure. Their flexibility enables them to adapt perfectly to the contours of the workpiece. The abrasive grain is embedded in the sturdy, flexible cloth backing material by means of a resinoid bond.

In ISO 3919, mounted flap wheels are designated as "flap wheels with shaft".

For general applications from coarse to fine grinding.

Name
PFERD Mounted Flap Wheels F 5030/6 A120 EAN 4007220155080
SKU
4007220155080
Brand
Pferd
Condition
New
Abrasive Aluminium oxide A
Dia. external 50 mm
Dia. shank 6 mm
Grit size 120
Length, shank 40
RPM, max. 15200 RPM
RPM, optimum 7000 RPM
Width 30 mm

Materials that can be worked

  • Aluminium
  • Annealed cast iron
  • Brass
  • Cast steel
  • Copper
  • Grey/nodular cast iron (GG/GJL, GGG/GJS)
  • Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC)
  • Stainless steel (INOX)
  • Steel materials with a hardness > 54 HRC
  • Steels up to 1,200 N/mm² (< 38 HRC)

Applications

  • Deburring
  • Leveling
  • Step-by-step fine grinding
  • Structuring (matt finishing, brush matting and satin finishing)
  • Surface work
  • Work on weld seams

Drive types

  • Flexible shaft drive
  • Straight grinder
