PFERD Aluminium Oxide Mounted Flap Wheel F dia. 80 x 20MM EAN 4007220155707

PFERD Aluminium Oxide Mounted Flap Wheel F dia. 80 x 20MM EAN 4007220155707

Add Enquiry Added to Enquiry
SKU 4007220155707
Condition New
Brand Pferd

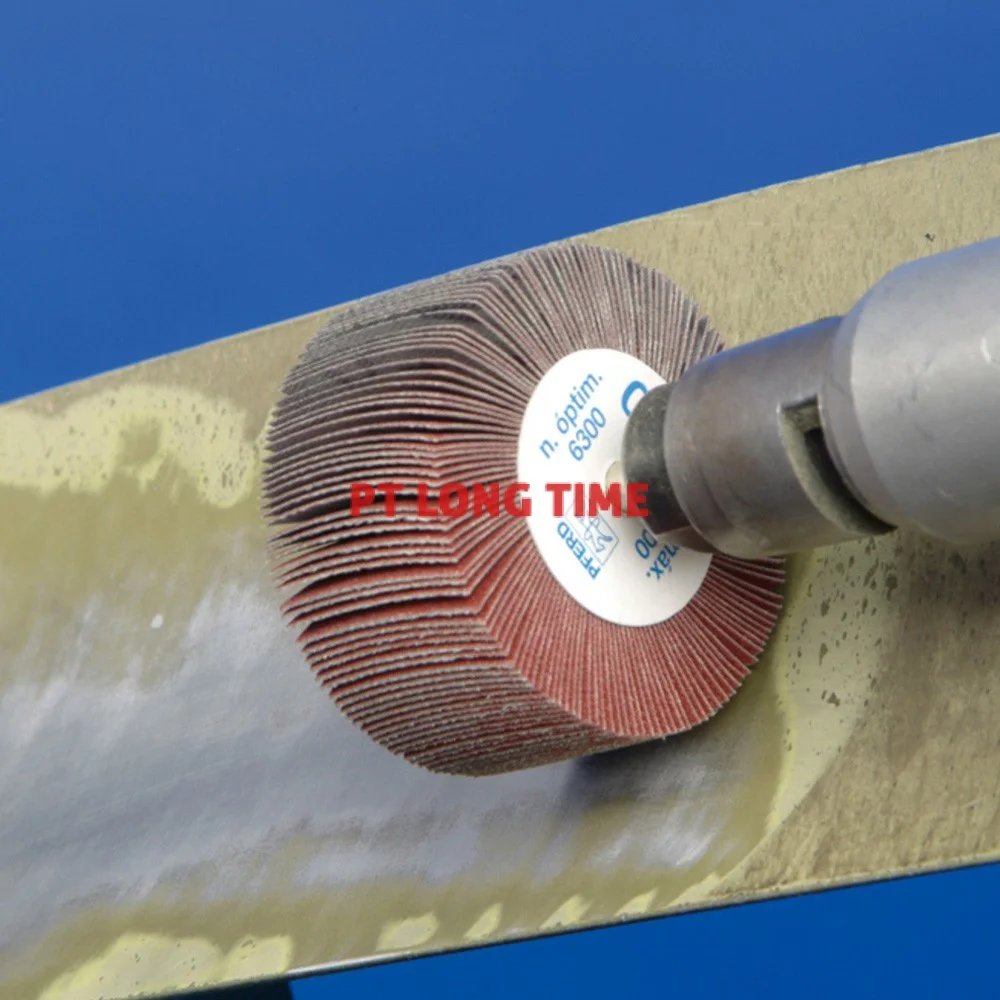

On mounted flap wheels, the flaps made of coated abrasive are arranged radially around the tool axis in a fan-type structure. Their flexibility enables them to adapt perfectly to the contours of the workpiece. The abrasive grain is embedded in the sturdy, flexible cloth backing material by means of a resinoid bond.

In ISO 3919, mounted flap wheels are designated as "flap wheels with shaft".

For general applications from coarse to fine grinding.

Name
PFERD Aluminium Oxide Mounted Flap Wheel F dia. 80 x 20MM EAN 4007220155707
SKU
4007220155707
Brand
Pferd
Condition
New
Abrasive Aluminium oxide A
Dia. external 80 mm
Dia. shank 6 mm
Grit size 120
Length, shank 40
RPM, max. 9500 RPM
RPM, optimum 4800 RPM
Width 20 mm
Materials that can be worked Applications
  • Aluminium
  • Annealed cast iron
  • Brass
  • Cast steel
  • Copper
  • Grey/nodular cast iron (GG/GJL, GGG/GJS)
  • Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC)
  • Stainless steel (INOX)
  • Steel materials with a hardness > 54 HRC
  • Steels up to 1,200 N/mm² (< 38 HRC)
  • Deburring
  • Leveling
  • Step-by-step fine grinding
  • Structuring (matt finishing, brush matting and satin finishing)
  • Surface work
  • Work on weld seams
Drive types
  • Drive spindle
  • Flexible shaft drive
  • Straight grinder
