PFERD Aluminium Oxide Mounted Flap Wheel F Dia. 60 x 15MM EAN 4007220155318

PFERD Aluminium Oxide Mounted Flap Wheel F Dia. 60 x 15MM EAN 4007220155318

Add Enquiry Added to Enquiry

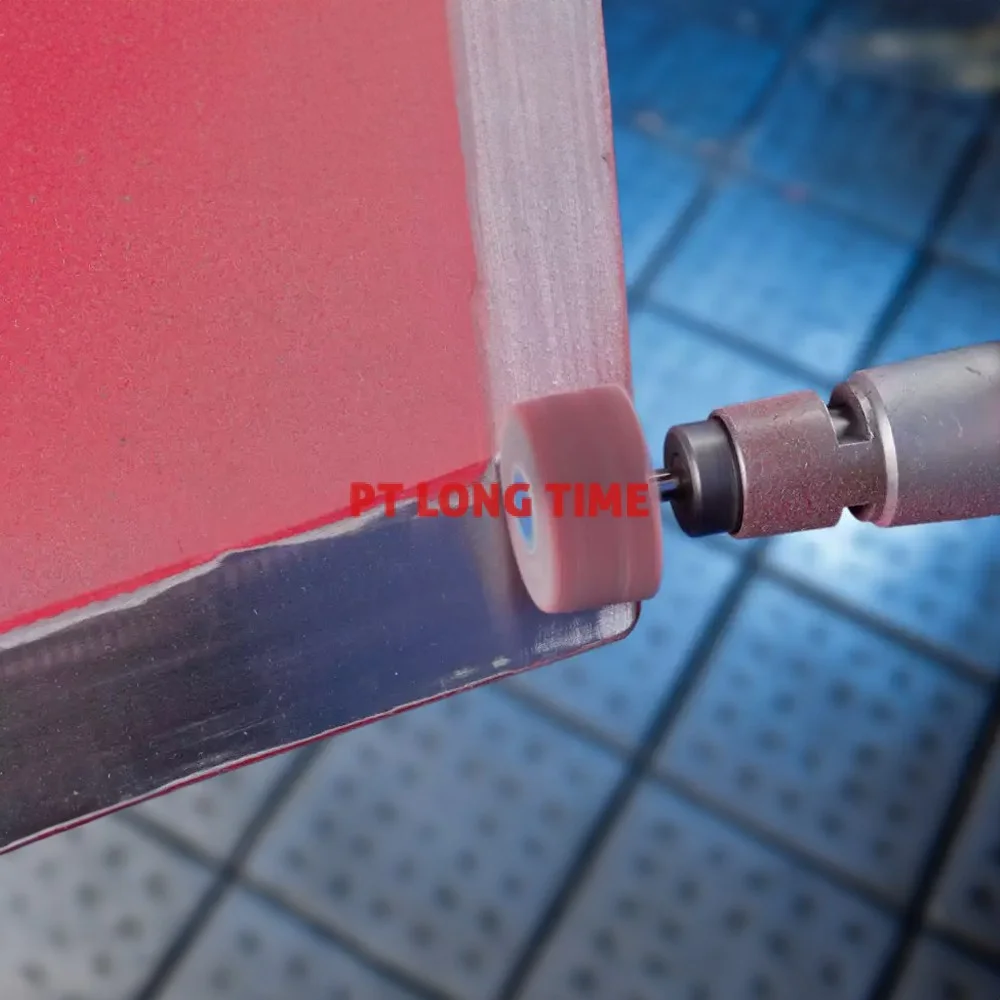

On mounted flap wheels, the flaps made of coated abrasive are arranged radially around the tool axis in a fan-type structure. Their flexibility enables them to adapt perfectly to the contours of the workpiece. The abrasive grain is embedded in the sturdy, flexible cloth backing material by means of a resinoid bond.

In ISO 3919, mounted flap wheels are designated as "flap wheels with shaft".

For general applications from coarse to fine grinding.

Name
PFERD Aluminium Oxide Mounted Flap Wheel F Dia. 60 x 15MM EAN 4007220155318
Brand
PFERD
Condition
New
Abrasive Aluminium oxide A
Dia. external 60 mm
Dia. shank 6 mm
Grit size 60
Length, shank 40
RPM, max. 12700 RPM
RPM, optimum 6300 RPM
Width 15 mm
Materials that can be worked Applications
  • Aluminium
  • Annealed cast iron
  • Brass
  • Cast steel
  • Copper
  • Grey/nodular cast iron (GG/GJL, GGG/GJS)
  • Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC)
  • Stainless steel (INOX)
  • Steel materials with a hardness > 54 HRC
  • Steels up to 1,200 N/mm² (< 38 HRC)
  • Deburring
  • Leveling
  • Step-by-step fine grinding
  • Structuring (matt finishing, brush matting and satin finishing)
  • Surface work
  • Work on weld seams
Drive types
  • Drive spindle
  • Flexible shaft drive
  • Straight grinder
