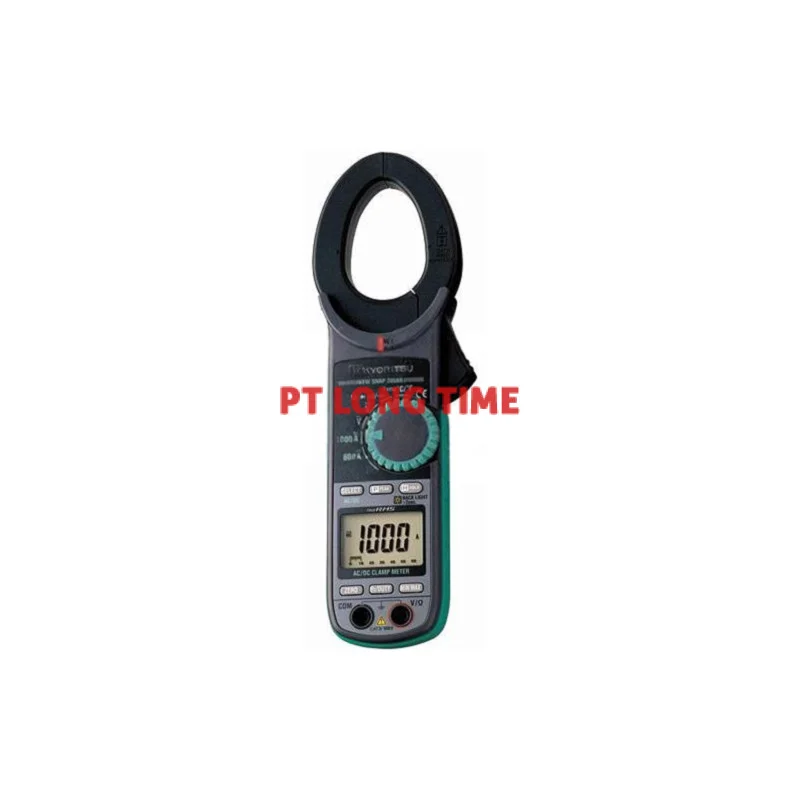

KYORITSU 2056R AC/DC Digital Clamp Meter

Designed to meet international safety standard IEC 61010-1 CAT IV 600V. This clamp meter can measure the voltage and current in both very low and high power circuits making it very useful for power distribution companies, power utilities and maintenance fields.

Specification
Name
KYORITSU 2056R AC/DC Digital Clamp Meter
SKU
2056R
Condition
New

			Parameter
			Specification

			AC A
			0~600.0 / 1000A

			2.0% rdg 5dgt (50/60Hz)

			3.5% rdg 5dgt (40~500Hz)

			DC A
			0~600.0 / 1000A

			1.5% rdg 5dgt

			AC V
			6 / 60 / 600V Auto Ranging

			1.5% rdg 4dgt (50/60Hz)

			3.5% rdg 5dgt (40~400Hz)

			DC V
			600m / 6 / 60 / 600V Auto Ranging

			1.0% rdg 3dgt

			Resistance
			600 / 6k / 60k / 600k / 6M / 60M (Auto Ranging)

			1% rdg 5dgt (600~6M)

			5% rdg 8dgt (60M)

			Continuity buzzer
			Buzzer sounds at 100

			Frequency / DUTY
			10 / 100 / 1k / 10kHz (Auto Ranging) / 0.1~99.9%

			Temperature
			-50 C ~ +300 C (with Temperature probe 8216)

			Conductor Size
			40 mm

			Withstand Voltage
			6880V AC for 5 seconds

			Safety Standard
			IEC 61010-1 CAT.IV 600V

			IEC 61010-031

			IEC 61010-2-032

			IEC 61326

			Power Source
			R03 (1.5V) (AAA) x 2

			Dimensions
			254(L) x 82(W) x 36(D) mm

			Accessories
			7066A (Test leads)

			9094 (Carrying case)

			Instruction Manual

			Optional
			8008 (Multi-Tran)

			8216 (Temperature probe)

Parameter	Specification
AC A	0~600.0 / 1000A 2.0% rdg 5dgt (50/60Hz) 3.5% rdg 5dgt (40~500Hz)
DC A	0~600.0 / 1000A 1.5% rdg 5dgt
AC V	6 / 60 / 600V Auto Ranging 1.5% rdg 4dgt (50/60Hz) 3.5% rdg 5dgt (40~400Hz)
DC V	600m / 6 / 60 / 600V Auto Ranging 1.0% rdg 3dgt
Resistance	600 / 6k / 60k / 600k / 6M / 60M (Auto Ranging) 1% rdg 5dgt (600~6M) 5% rdg 8dgt (60M)
Continuity buzzer	Buzzer sounds at 100
Frequency / DUTY	10 / 100 / 1k / 10kHz (Auto Ranging) / 0.1~99.9%
Temperature	-50 C ~ +300 C (with Temperature probe 8216)
Conductor Size	40 mm
Withstand Voltage	6880V AC for 5 seconds
Safety Standard	IEC 61010-1 CAT.IV 600V IEC 61010-031 IEC 61010-2-032 IEC 61326
Power Source	R03 (1.5V) (AAA) x 2
Dimensions	254(L) x 82(W) x 36(D) mm
Accessories	7066A (Test leads) 9094 (Carrying case) Instruction Manual
Optional	8008 (Multi-Tran) 8216 (Temperature probe)
