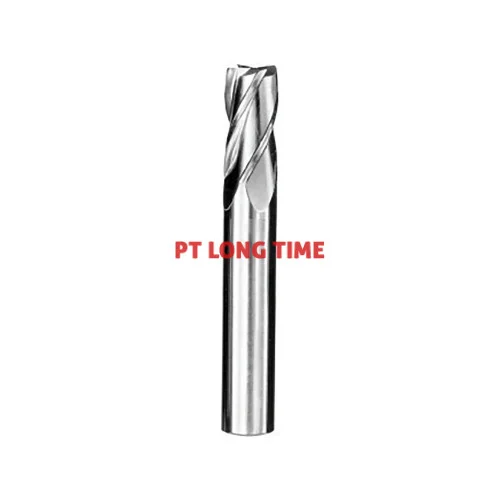

KYOCERA 40157 Carbide Endmill 10MM x 4FL SQ
General Application End Mill 10.00mm Dia, 22.00mm LOC, 10.00mm Shank Dia, 4 Flute, 30 Degree Helix, Uncoated, Series 01S, Square End End Mill
Specification
Name
KYOCERA 40157 Carbide Endmill 10MM x 4FL SQ
SKU
40157
Condition
New
| Series Description | General Application End Mill |
|---|---|
| End Configuration | Square End |
| Unit (inch/mm) | mm |
| Number of Flutes | 4 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |

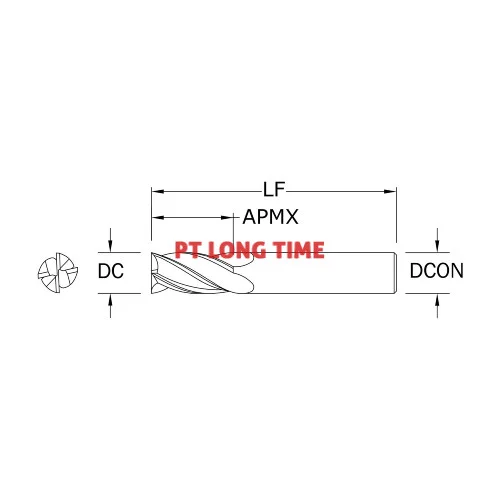

| Cutting Diameter (DC) (Decimal Inch) | 0.3937 |
| Cutting Diameter (DC) (mm) | 10.00 |
| Shank Diameter (DCON) (Decimal Inch) | 0.3937 |
| Shank Diameter (DCON) (mm) | 10.00 |
| Length of Cut (APMX) (Decimal Inch) | 0.8661 |
| Length of Cut (APMX) (mm) | 22.00 |
| Overall Length (LF) (Decimal Inch) | 2.9528 |
| Overall Length (LF) (mm) | 75.00 |
| Shank Length (LS) (Decimal Inch) | 2.0840 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.050 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Flute Type | Spiral |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 30 |
| Variable Helix | No |
| Center Cutting | Yes |
| Chip Breaker | No |
| Series | 01S |
| Weldon Flat | No |
| Shank Length (LS) (mm) | 52.93 |
| Coating | Bright/Uncoated |
