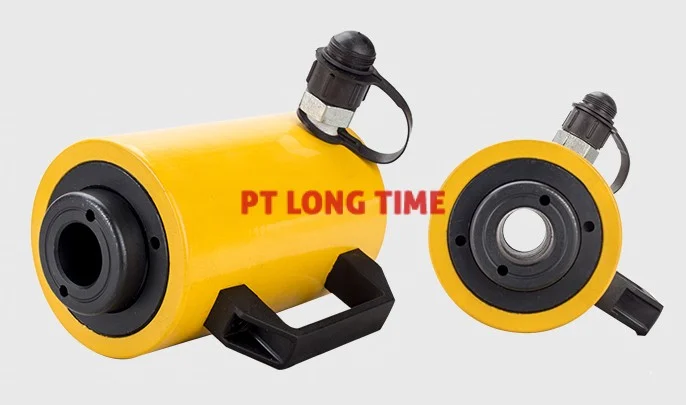

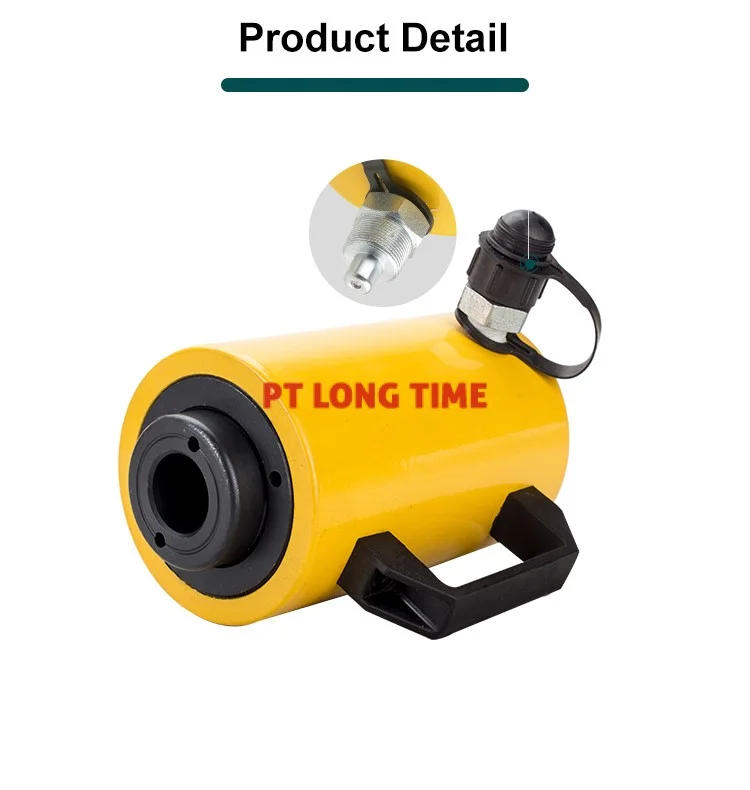

Hollow Hydraulic Jack Cylinder RCH-20100 with Tonnage of 20 Ton
- Hollow Plunger design allows for both pill push forces
- Backed enamel finsih for increased corrosion resistance
- Single acting spring return

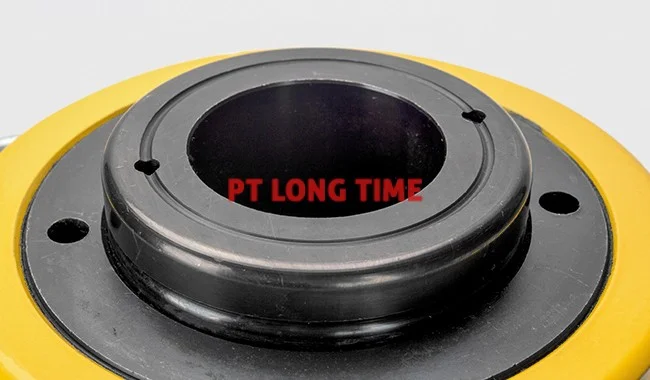

- Collar threads for easy fixturing
- Working jack up without jamming cylinder

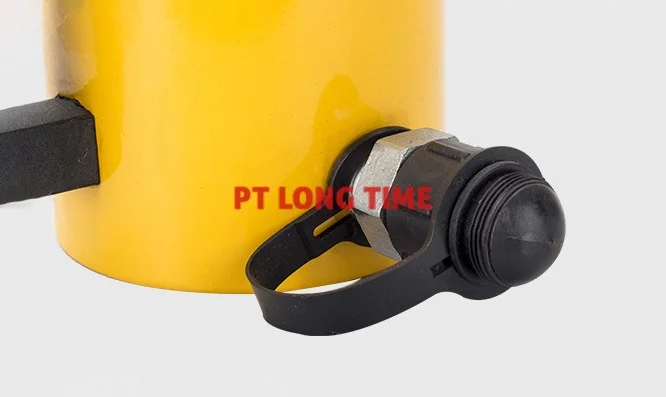

- Fast connector plastic dust-proof cover
- Smooth surface
Name
Hollow Hydraulic Jack Cylinder RCH-20100 with Tonnage of 20 Ton
Condition
New
| Item no | Output | Stroke | Centre Bore | Collapsed | Volume | Weight | RCH-2050 | 20T | 50mm | 28mm | 152mm | 180x120x200mm | 7,7Kg | RCH-20100 | 20T | 100mm | 28mm | 202mm | 150x100x220mm | 9,5Kg | RCH-3050 | 30T | 50mm | 35mm | 172mm | 165x120x195mm | 10,3Kg | RCH-30100 | 30T | 100mm | 35mm | 222mm | 170x120x245mm | 13Kg | RCH-6050 | 60T | 50mm | 49mm | 190mm | 250x250x280mm | 28,1Kg | RCH-60100 | 60T | 100mm | 49mm | 265mm | 250x250x330mm | 38Kg | RCH-10075 | 100T | 75mm | 80mm | 263mm | 310x310x280mm | 48Kg |
