HellermannTyton Heat Shrinkable Tubing 2:1 Thin-Wall 2.4/1.2 Black on 30m Reel

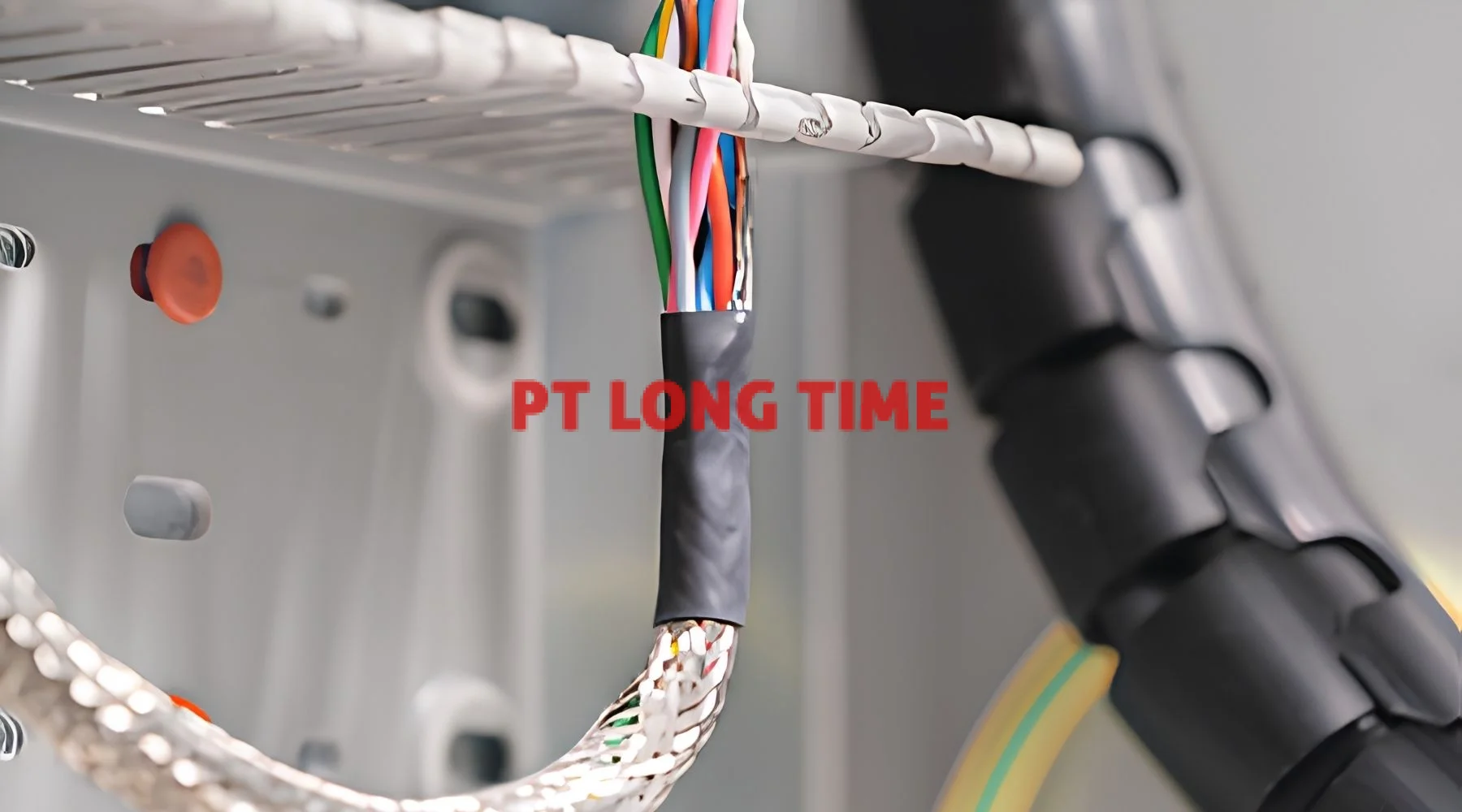

Due to it's versatility TF21 is suitable for a wide range of applications like electrical insulations, mechanical protection and marking.
- Thin wall, flexible polyolefin tubing
- Fast shrinking and low shrink temperature
- Meets and exceeds a range of industrial standards
- Big variety of different colours and sizes
- Flame retardant and UL224 VW1 listed
Name
HellermannTyton Heat Shrinkable Tubing 2:1 Thin-Wall 2.4/1.2 Black on 30m Reel
Brand
Condition
New
Specification
| Behaviour At Low Temperature | not cracking |
| Behaviour at Heat Shock | not refractive, not fluid, not dripping |
| Behaviour at low Temperature test method | SAE-AS23053 |
| Colour | Black (BK) |
| Elongation At Heat Aging | 420% |
| Heat Aging Test | 168h/175°C |
| Heat Aging test method | SAE-AS23053 |
| Heat Shock Test | 4h/250°C |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | TF21-2.4/1.2-PO-X-BK |
| Pack Content | 300m |
| Package Content packed in | reel |
| Printable | No |
| Product Family | TF21 |
| Product Group | Heat shrinkable tubing 2:1 - flexible and coloured |
| Shrink Ratio | 2:1 |
| Size | 3/32" |
| Type | TF21-2.4/1.2 |
| Variant | Thin-Wall |
| With inner glue (Yes/No) | No |
| For Object Outside Diameter | 1.44-2.16 mm |
| Length (L) | 300.0m |
| Longitudinal Change After Shrinkage | +/-5% |
| Recov. ⌀ d max. | 1.2mm |
| Supplied ⌀ D min. | 2.4mm |
| Wall (WT) | 0.51mm |
| CAS Number | 84852-53-9 |
| CSA Certified | Yes |
| Critical Substance | DBDPE |
| Dielectric Strength | 30kV/mm |
| EC Number | 284-366-9 |
| ELV compliant (Article 4 - 2) | Yes |
| Elongation at break (min.) | 400% |
| Elongation at break test method | ASTM D638 |
| Flammability | UL 224 VW-1 |
| Halogen-free | No |
| Hazardous Goods | No |
| Min. Shrink Temperature - °C | +105 °C |
| Nato number | 5970-12-194-0159 |
| Operating Temperature | -55 °C to +135 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Specifications |   |
| Specifications | ANSI/UL 224, C22.2 no. 198.1-99 |
| Tensile Strength | 14MPa |
| Test Method Tensile Strength | ASTM D638 |
| UL File link | Link |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | Yes |
| UL-File Number | E143529 |
| Volume Resistance | 10¹⁴ Ω cm |
| Water Absorption | 0.25% |
