HellermannTyton Cable Tie Mount for Screw Fixation, Wmax=12.7mm, ⌀10.29 mm, ⌀10.0 mm, 3/8

HellermannTyton Cable Tie Mount for Screw Fixation, Wmax=12.7mm, ⌀10.29 mm, ⌀10.0 mm, 3/8" (M10) Screw, Black, 500pcs.

Add Enquiry Added to Enquiry

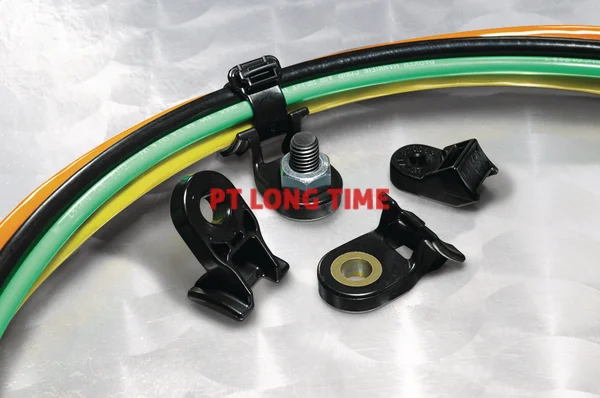

These heavy duty mounts (HDM) have been primarily designed for use in the automotive and truck industry. Nowadays they can be found in a variety of applications requiring heavy duty mounting in areas like the railway, defence and/or agriculture industry.

- Design offers secure alignment to the bundle

- Possible replacement of cushion clamps and/or metal clamps

- Eliminates the needs for multiple sized fix diameter clamps

- For heavy duty cable ties up to 13.5 mm width

- Easy maintenance of bundle by simply changing the cable tie


Name
HellermannTyton Cable Tie Mount for Screw Fixation, Wmax=12.7mm, ⌀10.29 mm, ⌀10.0 mm, 3/8" (M10) Screw, Black, 500pcs.
Brand
HellermannTyton
Condition
New

Specification

ColourBlack (BK)
Fixation MethodScrew Mounting and Rivet
MaterialPolyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Mounting Screw Type1/2" (M12) Screw
PART DESCRIPTIONHDM500-PA66HIRHSUV-BK
Package Content500pcs.
Package Content packed inpack
Product FamilyHigh Torque Mounts
Product GroupHarness clip for heavy duty applications, for screws or threaded bolts
Short DescriptionHigh torque mount 47x25 mm, high impact, heat and UV stabilised, black
TypeHDM500
UV-StabilisedYes
Weight/Unit0.014631kg
Height (H)20.7mm
Length (L)47.0mm
Strap Width max. (G)0.5"
Strap Width max. (G)12.7mm
Stud ⌀0.47"
Stud ⌀12.0 mm
Width (W)25.0mm
for Hole ⌀ (FH)12.7 mm
CE CertificationNo
CSA CertifiedNo
ELV compliant (Article 4 - 2)Yes
FlammabilityUL 94 HB
Hazardous GoodsNo
Max. Torque (Nm)154.6Nm
Max. Torque (lbf-In)114.0lbf-ft
Operating Temperature-40 °C to +105 °C
Operating Temperature, 1000h+160 °C
Operating Temperature, 5000h+125 °C
Operating Temperature, 500h+165 °C
ROHS compliantYes
