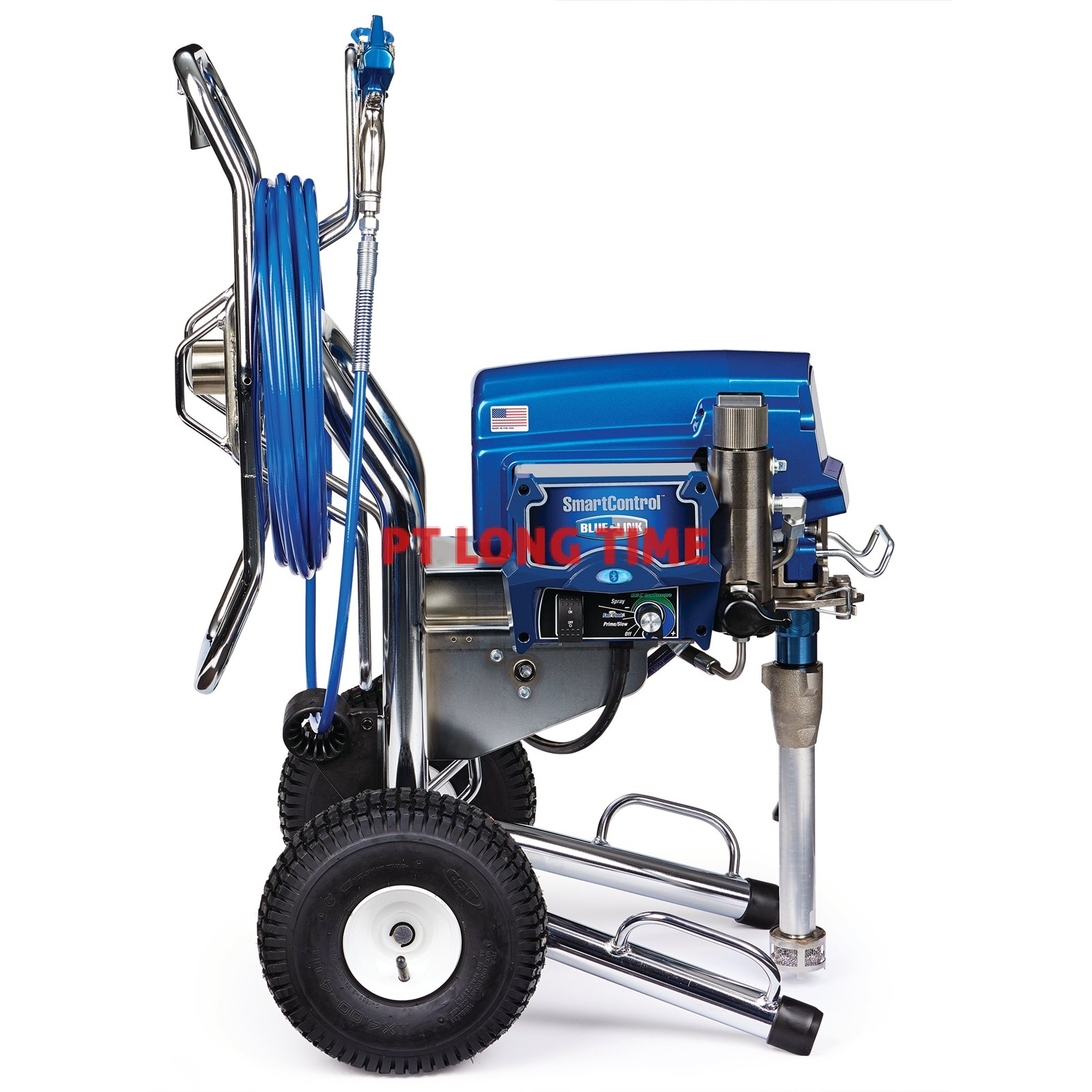

GRACO ULTRA MAX II 795
Features
Specification

The Standard Series sprayer comes with these "Only On A Graco" features:

  • Advantage Drive System Runs quiet and has a lifetime guarantee.
  • MaxPower Brushless DC Motor – Never change brushes with this maintenance-free, totally enclosed motor.
  • SmartControl 3.0 Pressure Control – Delivers consistent spray fan without pressure fluctuations at all spraying pressures, and includes ProGuard technology.
  • Endurance Pump – Amazingly durable and easy-to-service design means less downtime on the job.
  • Easy Out Pump Filter – Spill less material when removing the filter element.
  • Rugged Cart Design – Chrome over steel makes this durable cart last for years.
  • Heavy-Duty Prime Valve – Maintenance-free design withstands high pressure dumping.



The ProContractor Series sprayer has all the features of the Standard Series, plus:

  • QuikReel – Deploy and rewind up to 300 ft of hose in seconds without twists or coils.
  • LED Display – Bright easy-to-read LED display shows pressure readout, job/lifetime/gallon counter and self diagnostics.
  • WatchDog Pump Protection System – Saves the pump from damage when paint or texture material runs out or a hose breaks.
  • ProConnect 2 Pump Removal System – Change out the pump using no tools in seconds resulting in quickly getting back to work.
  • FastFlush Cleaning System – Cleans the unit four times faster using only half the water.
  • On-Board Toolbox – End frustration and save time by never again searching for tips, filters, and tools.
  • Ready to Spray – Save setup time, thanks to the 100 ft of hose and gun that’s already attached and ready to use.
Name
GRACO ULTRA MAX II 795
Brand
Condition
New
795 Sprayers
Sprayer
Maximum Delivery

4.2 lpm

North American Models

4.2 lpm

International Models

3.6 lpm

Maximum Tip Size

0.033

Fluid Outlet npsm

1/4 in

Cycles

52 per liter

Generator Minimum

5000 W

120V, A, Hz

15, 50/60

230V, A, Hz

10, 50/60

Dimensions
Weight:
Standard Series Lo-Boy

45 kg

Standard Series Hi-Boy

45 kg

ProContractor

52 kg

Height:
Standard Series Lo-Boy

69.9 cm

Standard Series Hi-Boy

72.4 cm (Handle down), 98.4 cm (Handle up)

ProContractor

99 cm

Length:
Standard Series Lo-Boy

94 cm

Standard Series Hi-Boy

66 cm

ProContractor

75 cm

Width:

57.2 cm

Wetted parts

zinc- and nickel-plated carbon steel, nylon, stainless steel, PTFE, Acetal, leather, UHMWPE, aluminum, tungsten carbide, PEEK, brass

Noise Level:
Sound Power, dBa per ISO 3744; measured at 3.1 ft (1 m)

91 dBa

Sound Pressure, dBa per ISO 3744; measured at 3.1 ft (1 m)

82 dBa
