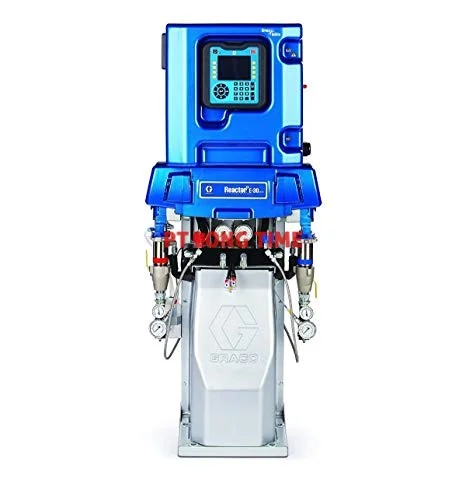

GRACO Reactor 2 E-XP2 Polyurea Equipment

Count on the Reactor 2 E-XP2 proportioner for advanced technology in applying fast-curing polyurea coatings. Because it's a Reactor 2 series proportioner, it offers software and hardware enhancements for better spray performance, plus technologies that add to your bottom line.

The Reactor 2 E-XP2 is engineered to process and spray polyurea and other coatings that require high pressures. The hybrid heater and heated hose condition the materials to the right viscosity prior to mixing. Quick knockdown lower pump for easy maintenance, easy-to-use controls, and rugged design make the Reactor the preferred choice for coatings applications.



Reactor 2 E-XP2 gives you:

  • Compact footprint – more room in your spray rig
  • Ergonomic design – easier to service
  • Advanced control modules
  • Better spraying performance compared to traditional electric Reactor systems
  • Troubleshooting made quick and easy with QR codes

Graco InSite™ gives you:



  • Better control – manage your polyurea business wherever you are
  • Better documentation – automatically collect job log data and spray parameters – lets you confirm the job was sprayed to specifications
  • Better fleet and crew management
  • Better cost containment and forecasting
  • Graco InSite comes standard on all Elite models of Reactor 2
  • Advanced control technology
    • Tracks, monitors and saves project data
    • Data can be saved and downloaded onto a USB drive
    • Stores up to 24 chemical recipes
    • Drum level indicators
    •
  • Graco InSite Remote Reporting Technology
    • Transmits real-time job activity you can view on your smart phone, tablet or computer
    • Standard on Elite models
    •
  • Quick and easy troubleshooting thanks to QR code shortcuts
    • Results in less downtime
    •
  • Easy to reach, conveniently-placed electronics
  •
  • Advanced control modules
    • Handles power fluctuations
    •
  • Sacrificial surge protector
    • Protects your electronics against excessive power spikes
    •
  • Smooth, consistent spray performance – similar to hydraulic systems
  •
  • Three-year warranty
    • Covers user display module, control modules and electric motor
    • One of the best in the industry
Name
GRACO Reactor 2 E-XP2 Polyurea Equipment
Brand
Condition
New
Reactor 2 E-30
Maximum Fluid Working Pressure
E-XP2

24.1 MPa, 241 bar

Maximum Fluid Temperature
E-XP2

88°C

Maximum Flow Rate
E-XP2

7.6 lpm

Maximum Heated Hose Length
Length

94 m

Output per Cycle, ISO and RES
E-XP2

0.0771 liter

Operating Ambient Temperature Range
Temperature

-7° to 49°C

Line Voltage Requirement
Nominal 200–240 VAC, 1 Phase, 50/60 Hz

195–265 VAC

Nominal 200–240 VAC, 3 phase, DELTA, 50/60 Hz

195–265 VAC

Nominal 350–415 VAC, 3 phase, WYE, 50/60 Hz

340–455 VAC

Heater Power, (at 230 VAC rated voltage)
E-XP2 15 kW

15,300 Watts

Sound Pressure, Sound Pressure measured per ISO-9614–2.
E-XP2, Measured from 3.1 ft (1 m), at 3000 psi (21 MPa, 207 bar), 1 gpm (3.8 lpm)

79.6 dBA

Sound Power
E-XP2, Measured from 3.1 ft (1 m), at 3000 psi (21 MPa, 207 bar), 1 gpm (3.8 lpm)

86.6 dBA

Fluid Inlets
Component A ISO) and Component B (RES)

3/4 NPT(f) with 3/4 NPSM(f) union

Fluid Outlets
Component A (ISO)

#8 (1/2 in.) JIC, with #5 (5/16 in.) JIC adapter

Component B (RES)

#10 (5/8 in.) JIC, with #6 (3/8 in.) JIC adapter

Fluid Circulation Ports
Size

1/4 NPSM(m)

Maximum Pressure

1.75 MPa, 17.5 bar

Dimensions
Width

668 mm

Height

1600 mm

Depth

381 mm

Weight
E-XP2

156 kg

E-XP Elite

159 kg

Wetted Parts
Material

Aluminum, stainless steel, zinc plated carbon steel, brass, carbide, chrome, chemically resistant o-rings, PTFE, ultra-high molecular weight polyethylene
