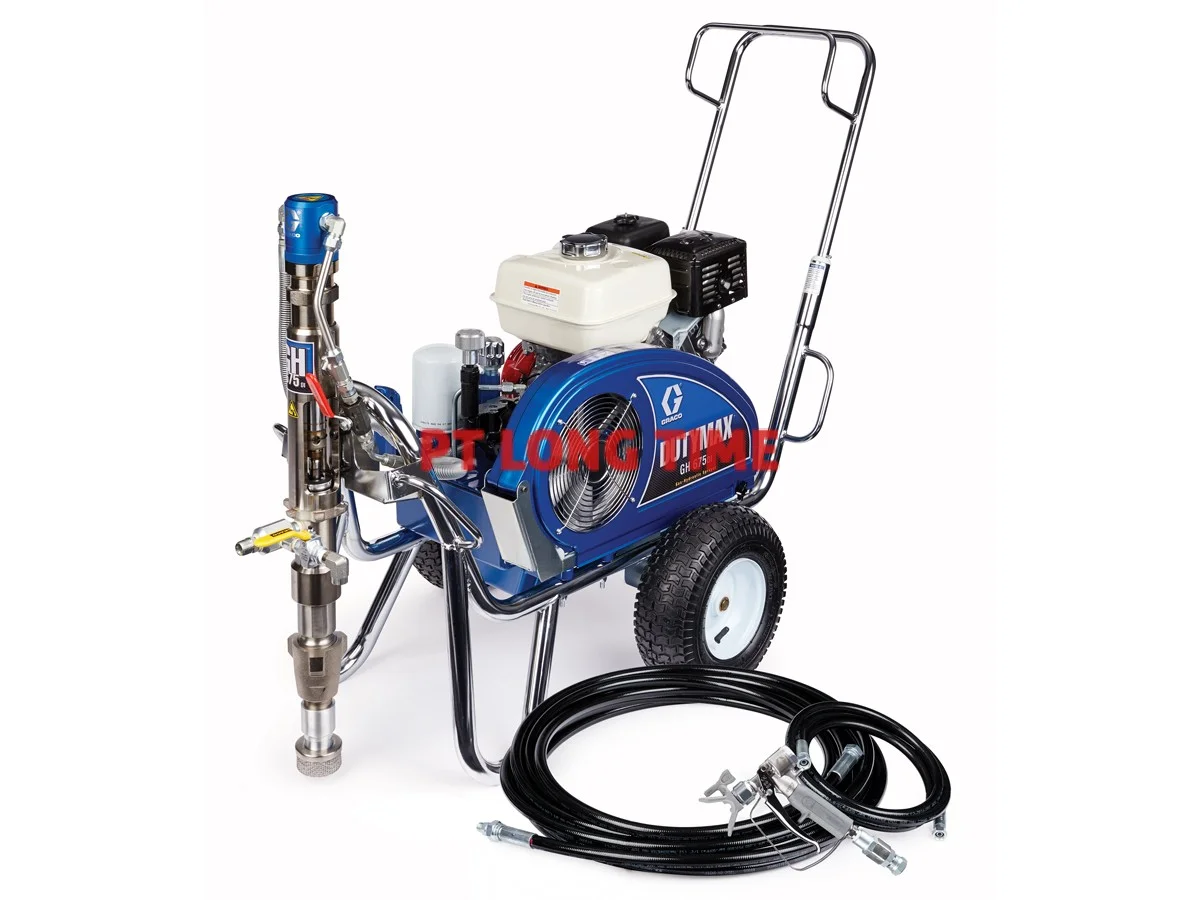

The DutyMax GH 675DI is the preferred choice for high production professional contractors who handle hard-to-atomize materials such as silicone and other waterproofing and protective coating materials. This compact sprayer includes the ultimate portability anywhere the job demands.
Tackle the toughest coatings with a maximum pressure of 6750 psi and flow rates up to 1.5 gpm. Significantly faster than manual rolling or squeegee applications, this is the ideal solution for cut-in and detail work on large jobs. Cleanup is simple and economical using less solvent than larger systems. Converts to 3300 psi / 3 gpm pump with optional kit to spray both silicone and acrylics — like having 2 sprayers in 1. Removable engine provides the ultimate versatility for transporting.
- 6750 PSI Direct Immersion Pump
- Submerged foot valve
- Stainless steel rod and hard chrome cylinder deliver unmatched durability and life
- Easily loads and pumps high-viscosity fluids
- Filter-less design with extra-large material outlet optimizes flow up to 1.5 gpm
- Heavy-Duty Hydraulic System
- Faster, more responsive changeover
- O-ring sealed to eliminate leaks
- High-precision pressure control
- No hydraulic reset button needed
- Durable hydraulic lines for long life
- Heavy-Duty Cooling System
- Large 4 gallon hydraulic reservoir
- Return line hydraulic filter extends life
- No special hydraulic fluid needed
- Proven cooler and blower system
- Easy to use drain plug
- Rugged, Heavy-Duty Steel Frame
- Easy-roll tubed pneumatic tires
- Enamel painted steel tubing – corrosion protection
- Multi-function design converts to skid mount in seconds
- Honda® Engine
- 270 cc (9 HP) engine with integrated fuel tank to deliver maximum performance
- Contractor preferred engine with Oil Alert
- High-Pressure Gun/Hose
- Durable XTR-7 HF 7250 psi spray gun
- Easy to pull trigger for less fatigue
- High-pressure Xtreme Duty hose
- Ready to Spray
- 20 inch tip extension
- 180 degree swivel
- XHD 523, 527, 531 Tips and Guard
- 1/2 in x 50 ft Xtreme-Duty Airless Hose
- 3/8 in x 10 ft Xtreme-Duty Airless Whip Hose
| Compatible Material | Acrylics, Block Filler, Coal Tar, Contact Cement, Elastomerics, Enamel, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Emulsion, Intumescent, Mastics, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Emulsion, Paint, Polyester, Polyurethane, Primer, Silicone, Texture Mud, Waterproofing |
|---|---|
| Compatible Replacement Pump | 17U996 |
| Includes | XTR-7 HF Gun with Swivel, XHD RAC 523 Spray Tip, XHD RAC 527 Spray Tip, XHD RAC 531 Spray Tip, XHD RAC Guard, 1/2 in x 50 ft Xtreme-Duty Airless Hose, 3/8 in x 10 ft Xtreme-Duty Airless Whip Hose, TSL 4 oz |
| Model | DutyMax |
| Series | GH 675DI |
| Type | Airless Sprayer |
