FN TAPE
- Application and wrapping to piping or connections close to high temperature area which would be ignition sources will avoid splashing of fuel oil in ship engine room and prevent finally fire there.
- In the case of flame approaching to FN Tape or FN Sheet, they would not be combusted. : Fire resistant is confirmed in fire resistant test.
- FN TAPE has character to high-pressure proof with structure of chemical fabric with high-strength and special Aluminum foils
- FN TAPE is superior to oil resistance, heat resistance, and weather proof, furthermore, and has long life.
- Application to piping and the connection is very easy, just only taping and wrapping. Any special tools and experience are not also needed.
Then we can say total application cost would be pretty low.
- FN Tape is fully complied with the ammended SOLAS Regurations II O-2/15.2.11 concerned
- Just by proper taping only pilling on 1/2-1/3, spouting of combustible oil can be prevented

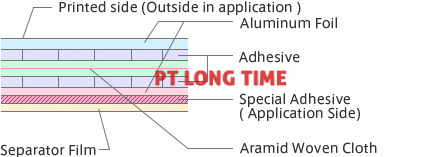

- Since FN Tape is composed of aluminium foil and incombustible woven cloth together with adhesive agent, it does not burn even when a flame contacts it. ( Standard temparature : below 200 Degree C )
- Thanks to a strong inner woven cloth, the tape can endure jetting pressure as high as 20-30 kgf/cm2G upon taping. It is not necesary for taping many times below 15kgf pressure
- The tape has excellent heat resistance, oil resistance, wear resistance and weatherability and can be stored for prolonged periods (2-3 years)
- The adhesive agent of the tape is of a natural setting type which is hard to stick to your hands without space and spontaneously sets and hardens after taping. ( Not necessary for band or metal fitting )
- Neither special tools nor any experience, except scissors to fitting and pentch to take off, is needed too tape and remove the tape.
Name
FN TAPE
Condition
New
| Tensile Strength | 295N(30kgf)/ 10mm width |
|---|---|
| Adhesive Power | 700gf/10mm width |
| Shear Adhesive Power | 98N(10kg)/20 x 20 mm |
| Pressure Proof | Max 1.5MPa |
| Heat Proof | Max 150 Degree C |
| Oil Resistance | Inactive to fuel oil and other flammable oils |
| Weather Proof | No deterioration after 72hours weather test. |
