Crosby 1262031 Bow Shackle 7/8" WLL 6.1/2T Bolt Type Shackle
Crosby® Anchor Shackle, Series: G-209, 12 ton Load, 1-1/4 in Size, 1-3/8 in Pin dia, Screw Pin, 4.69 in Inner Length, 3-1/4 in Inner Width, 2.03 in Opening, 3 in Eye Outer, 8-1/4 in OAL, 6-1/4 in OAW, Carbon Steel Body, Alloy Pin, Hot Dipped Galvanized
Product Features
Specification
- Working load limit and grade 6 permanently shown on every shackle
- Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds or other certification
- Approved for use at -40 to 400 deg F
- 3.25 ton through 25 ton G209 anchor shackles are type approved to DNV certification notes 2.7-1- offshore containers
- The shackles are statistical proof and impact tested to 42 J min average at -4 deg F
- The tests are conducted by Crosby® and 3.1 test certified
- All other 209 shackles can meet charpy requirements of 42 J average at -4 deg F upon special request
- Look for the Red Pin® the mark of genuine Crosby® quality
Name
Crosby 1262031 Bow Shackle 7/8" WLL 6.1/2T Bolt Type Shackle
SKU
1262031
Brand
Ships from
Batam, Indonesia
Nominal Size (in) | 7/8 | |
Working Load Limit | 6.5 | |
Weight Each (lb) | 3.95 | |

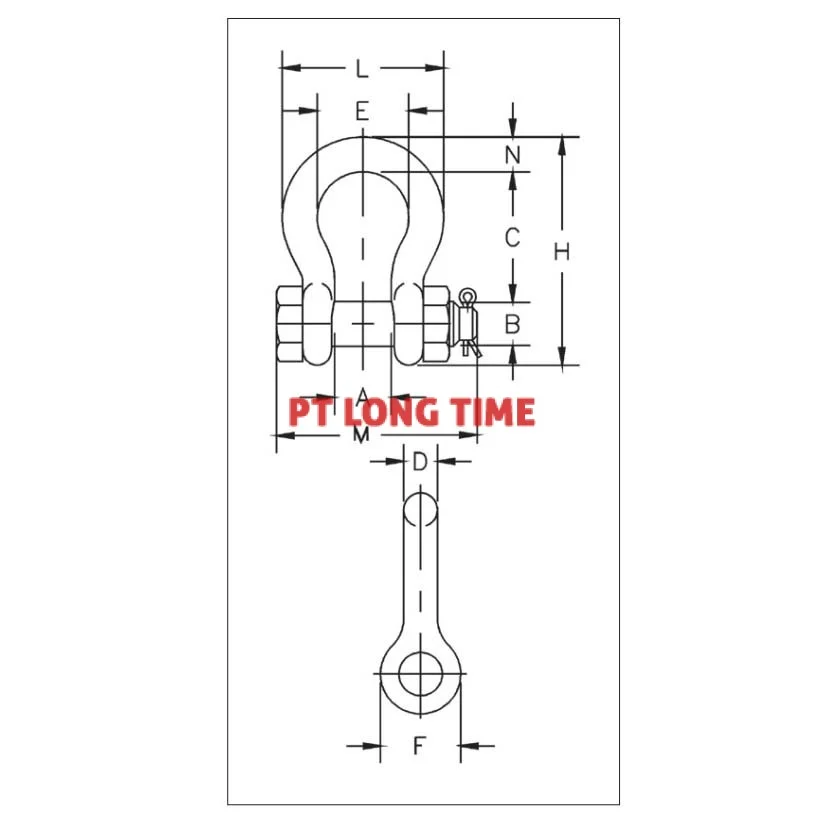

Dimensions (in) | A | 1.44 |
B | 1.02 | |
C | 3.31 | |
D | .88 | |
E | 2.28 | |
F | 2.09 | |
H | 5.83 | |
L | 4.03 | |
M | 4.82 | |
N | .97 | |
Tolerance (+ / - in) | C | .25 |
A | .06 |
