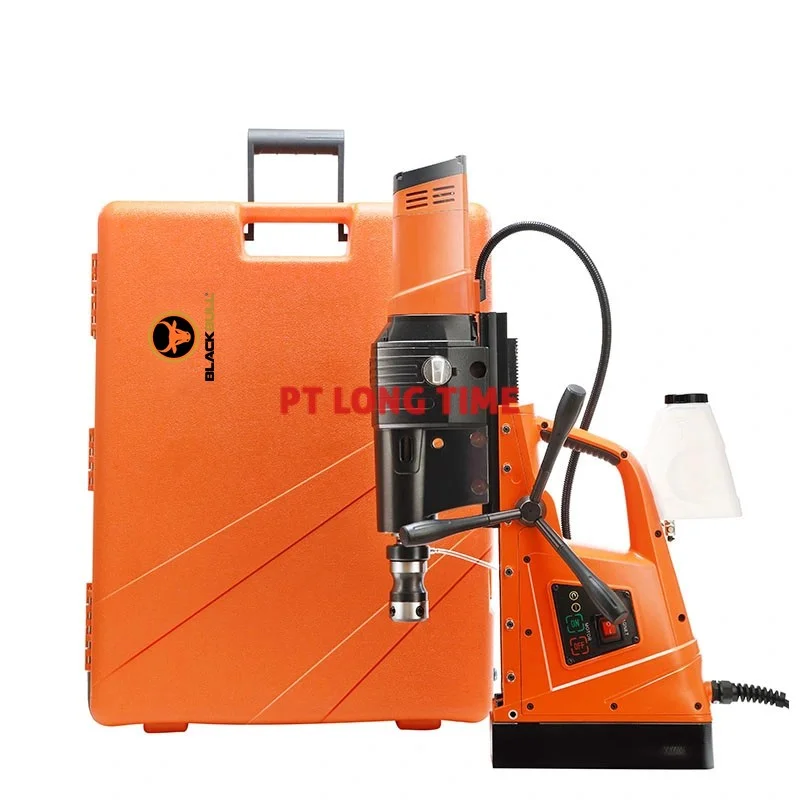

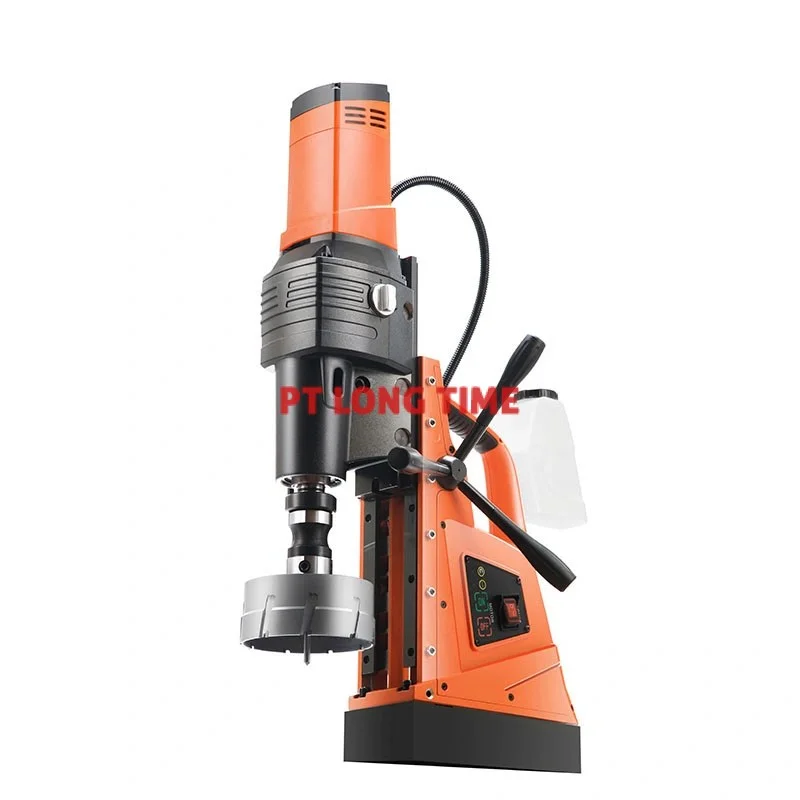

BLACKBULL Magnetic Drill Machine DX120 Cutter 120MM Depth 100MM Power 2500W
- 1. Split type machine body, in order to ensure sealing, there have a sealing groove design between body and cover.
- 2. The control panel is designed with the combination of mechanical ship switch and micro film switch.
- 3. Rigidity Design of DX-120 Magnetic drill machine:
- (1) 2500W high-power motor to meet high-feed drilling condition.
- (2) 20000N magnetic base suction, higher than most same model in the market.
- (3) High tooth ratio gear transmission design, spindle output torque up to 170Nm.
- (4) Adopt MT4 main shaft, can bear more torque.

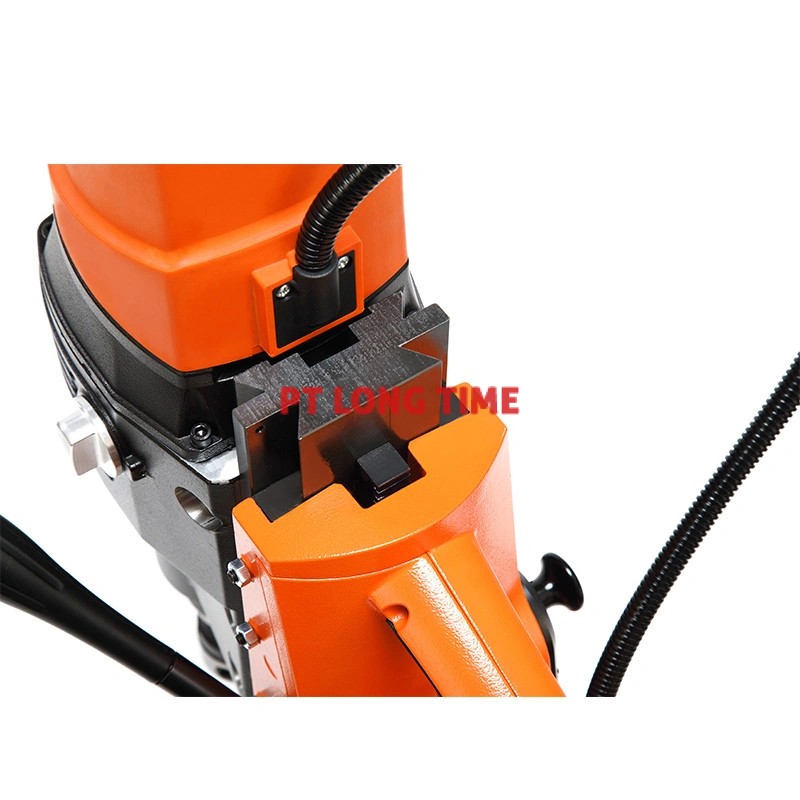

- 4. Double dovetail design, economic and practical.
- 5. Elastic adjustment function of guide rail, make the force more uniform on cutting tool when drilling.
- 6. Gear box cooling pipe perforation design, to meet customer requirements for different arbor, different habits of use.
- 7. The enclosed and guided structure of air outlet to reduce lateral air flow at front operating position and handle.
Name
BLACKBULL Magnetic Drill Machine DX120 Cutter 120MM Depth 100MM Power 2500W
Brand
Condition
New
| Motor rated power | 2500 W |
| Load rpm | 80/125/175/300 rpm |
| Tool Holder | MT4 |
| Voltage | AC 220-240 V |
| Power Frequency | 50-60 Hz |
| Magnetic adhesion | 20000 N |
| The max.cutting dia. ( annular cutter) | 120mm/4-3/4" |
| The max.cutting dia. ( twist drill) | 42mm 1-11/16" |
| The max. cutting depth | 100mm / 4" |
| The whole machine size | 440mm×250mm× 580mm |
| Magnet footprint | 280mmx115mm |
| Weight | 36.5 kg |
